Product Overview

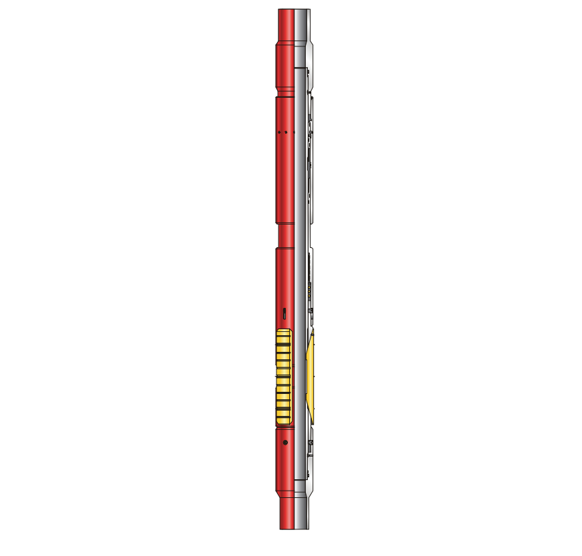

The ROk-ANkOR® Slip System by Weatherford is a hydraulically set openhole anchoring solution engineered to reliably secure liners during high-pressure stimulation and production operations. Its patented low-penetration slip design minimizes formation damage while delivering robust holding capacity, making it ideal for horizontal wells and multizone completions. As a core element in Weatherford’s ZoneSelect™ system, this anchor is purpose-built for operational reliability, precision, and maximum tool longevity.
Key Features, Benefits & Advantages
-
Anti-Preset Mechanism – Prevents accidental tool activation during deployment.
-
Low-Damage Slip Design – Patented technology reduces slip penetration for minimal formation impact.
-
Irregular Hole Compliance – Maintains reliable anchoring in non-uniform wellbores.
-
Integrated Centralization – Keeps the completion string centered, reducing vibrational fatigue.
-
Sliding Prevention – Secures openhole packers from moving, improving long-term reliability.
-
Scalable Load Capacity – Stackable for enhanced anchoring strength.
-
Flexible Placement – Can be positioned anywhere along the completion string.
Technical Specifications
| Parameter | Value |
|---|---|
| Tool Size | 4-1/2 in. × 6-1/2 in. |
| Openhole Range | 6 to 6-1/2 in. (152.4 to 165.1 mm) |
| Tubing Size | 4-1/2 in. (114.3 mm) |
| Tubing Weight | 12.6 lb/ft (5.715 kg/m) |
| Differential Pressure | 1,000 psi (6.895 MPa) |
| Holding Capacity | 200,000 lb (90,718 kg) |
| Body Material | 4140 P-110 steel |
| Maximum OD | 5-3/4 in. (146.1 mm) |
| Minimum ID | 3-1/2 in. (88.9 mm) |
Equipment Compatibility & Cross-Reference
-
System Compatibility: Fully compatible with Weatherford’s ZoneSelect™ fracturing systems
-
Completion Types: Supports both cemented and openhole completion assemblies
-
Deployment Method: Hydraulically set, positioned at the toe or strategic zones of the well
Application & Industry Use
-
Applications:
-
Openhole completions requiring high anchoring reliability
-
High-pressure hydraulic fracturing zones
-
Horizontal wells with non-uniform bore geometry
-
Anchor support for openhole packers
-
-
Industry Segments:
-
Upstream unconventional completions
-
Tight gas and shale plays
-
Offshore and onshore stimulation programs
-
Certifications & Compliance
-
Constructed from 4140 P-110 high-strength steel
-
Designed to meet pressure integrity and mechanical holding demands of high-pressure completions
-
Built under ISO 9001-certified manufacturing processes
-
Suitable for use in Class I Div 2 hazardous environments
Ordering & Procurement Details
-
Availability: Stocked for 4-1/2” × 6-1/2” configurations; other sizes available upon request
-
Lead Times: 2–3 weeks standard; expedited service available
-
Bulk Orders: Volume pricing and long-term contract fulfillment available
-
Shipping Hubs: North America, Middle East, Latin America, and APAC regions
-
Payment Terms: Flexible Net 30/60 available for pre-approved buyers
Frequently Asked Questions (FAQ)
Q: Can multiple anchors be installed in the same wellbore?
A: Yes. The system is designed for stacking to meet custom load requirements.
Q: How does the tool handle irregular borehole shapes?
A: The slip mechanism adapts to bore irregularities, maintaining secure liner anchoring.
Q: What prevents it from prematurely setting?
A: An anti-preset mechanism ensures activation only occurs when intended via hydraulic pressure.
Q: What is the typical holding strength of the tool?
A: Each tool is rated to 200,000 lb (90,718 kg) holding capacity.
Q: Is it compatible with openhole packers?
A: Yes. The anchor prevents movement of openhole packers, improving their life span and reliability.
