Product Overview

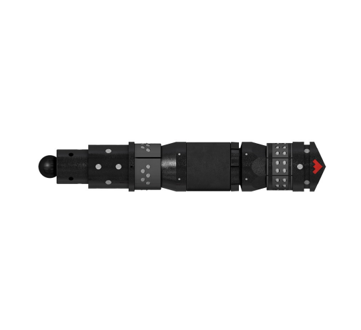

The Minima™ SW Special Weight Composite Frac Plug is engineered for high-performance plug-and-perf completions, combining rapid drill-out capability with strong anchoring and sealing under extreme conditions. Designed with powder metal buttons and a composite chassis, it delivers superior operational speed, reducing cleanout time and improving wellsite efficiency. With more than 33,000 installations worldwide, this plug offers proven field reliability for unconventional completions in horizontal wells.
Key Features, Benefits & Advantages
-
Fast Drill-Out Performance – Average mill-out time of 5 minutes per plug, accelerating the transition to production.
-
Minimized Cuttings – Composite and powder metal construction produces lightweight debris that lifts easily to surface.
-
Top Ball Configuration – Supports consistent isolation for stimulation stages.
-
Field-Proven Design – Over 33,000 successful installations across multiple basins.
-
Compatibility with Coiled Tubing – Enables efficient drill-out using tri-cone or junk mill bits.
-
Enhanced Operational Efficiency – Reduces rig time, cuttings disposal costs, and NPT.
Technical Specifications
| Parameter | Value |
|---|---|
| Tool OD | 4 3/8 in. |
| Casing Size | 5 1/2 in., 20 lb/ft production casing |
| Material Composition | Proprietary composite with powder metal buttons |
| Mill-Out Time (Avg.) | 5 minutes per plug |
| Drillout Method | Tri-cone bit on coiled tubing |
| Circulating Pressure (Frac) | 6,200 psi (42.75 MPa) |
| Circulating Pressure (Cleanout) | 1,400 psi (9.65 MPa) |
| Temperature Rating | 150°F (66°C) |
| Hole Size / Type | 6 in., 90° horizontal well |
| Lateral Length | 5,300 ft (1,615 m) |
| Total Depth | 15,355 ft (4,680 m) |
Equipment Compatibility & Cross-Reference
-
Completion Type: Plug-and-perf horizontal wells
-
Drill-Out Compatibility: Compatible with coiled tubing and standard tri-cone or junk mill bits
-
Casing Fitment: Optimized for 5-1/2 in. casing strings
-
Alternative to: Conventional bridge plugs requiring time-intensive mill-out operations
Application & Industry Use
-
Applications:
-
High-efficiency multistage fracturing operations
-
Rapid wellbore transition from stimulation to production
-
Cuttings-sensitive production environments
-
-
Industry Segments:
-
Unconventional shale plays
-
Tight oil/gas formations
-
Onshore horizontal completions
-
North American basins and similar global regions
-
Certifications & Compliance
-
Manufactured under ISO 9001 quality systems
-
Validated for plug-and-perf pressure and temperature conditions
-
Compliant with standard environmental and safety protocols
Ordering & Procurement Details
-
Availability: In stock for 5-1/2 in. casing applications
-
Lead Times: Immediate shipment from North America and Permian-based warehouses
-
Bulk Order Options: Volume pricing available for pad-wide and multi-well programs
-
Procurement Contracts: Eligible for long-term supply agreements with tailored payment terms (Net 30/60)
-
Support: Onsite service crew deployment available for major completions
Frequently Asked Questions (FAQ)
Q: What bit types are recommended for mill-out?
A: Tri-cone and junk mill bits work effectively on the composite chassis and powder metal buttons.
Q: What is the average time to drill out one plug?
A: Field data shows an average drill-out time of 5 minutes per plug.
Q: Does the plug produce large cuttings during mill-out?
A: No. It breaks into small, lightweight fragments that easily circulate out, reducing cleanout time.
Q: Can this plug be used in high-temperature wells?
A: Yes, it is rated for bottomhole temperatures up to 150°F (66°C).
Q: Is this product compatible with all coiled tubing units?
A: Yes. It is fully compatible with standard CT units used in horizontal completions.
Call to Action (CTA)
📦 Order Now for Fast Delivery & Permian Basin Deployment
🧾 Request a Quote for Pad-Wide Plug Supply Contracts
📞 Speak with Our Technical Procurement Team for Custom Solutions
📎 For complete specifications, pressure ratings, and mill-out performance data, see the attached technical data sheet (PDF).
