Product Overview

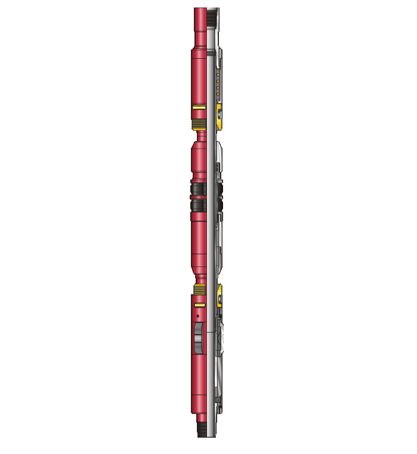

The ArrowSet I-XS from Weatherford is a field-proven, retrievable double-grip mechanical packer designed to deliver secure annular isolation in production, stimulation, and injection applications. Built to be set with either compression or tension, this packer is ideal for both shallow and deep wells, and it includes a patented upper-slip release mechanism for easy retrieval. The one-quarter turn set/release action simplifies deployment and recovery, reducing rig time and operational costs.
Key Features, Benefits & Advantages
-
✅ Versatile Setting Mechanism: Can be set using compression or tension — optimal for both vertical and deviated wells.
-
✅ Fast Deployment & Retrieval: Only a ¼ turn of the tubing is needed to set or release the packer.
-
✅ Enhanced Slip Debris Management: Bypass valve located below the upper slips allows debris to be flushed out during circulation.
-
✅ Patented Release System: Reduces pull force by releasing a nondirectional slip first — extends tool life and reduces stuck risks.
-
✅ T-2 On-Off Tool Compatibility: Enables tubing retrieval without removing the packer — streamlines recompletions and workovers.
-
✅ Hostile Environment Options: Available with elastomer variations for high H₂S or CO₂ service.
-
✅ Field-Proven Reliability: Used worldwide across production and injection wells with fiberglass and steel tubing.
Technical Specifications
| Casing Size (in) | Weight (lb/ft) | Min ID (in) | Max ID (in) | Max OD (in) | Min ID (in) | Thread Connection | Product Code |
|---|---|---|---|---|---|---|---|
| 4-1/2 | 9.5–13.5 | 3.920 | 4.090 | 3.750 | 1.985 | 2-3/8 EUE 8 Rd | 604-45 |
| 5-1/2 | 14.0–17.0 | 4.892 | 5.012 | 4.515 | 1.985 | 2-3/8 EUE / 2-7/8 EUE 8 Rd | 604-55 / 604-56 |
| 6-5/8 | 24.0–32.0 | 5.675 | 5.921 | 5.515 | 2.375 | 2-7/8 EUE 8 Rd | 604-65 / 604-68 |
| 7 | 17.0–26.0 | 6.276 | 6.538 | 6.000 | 3.000 | 2-7/8 / 3-1/2 EUE 8 Rd | 604-72 / 604-74 |
Other sizes/configurations available upon request.
Equipment Compatibility & Cross-Reference
-
Compatible Tools: Weatherford T-2 On-Off Tool
-
Tubing Types: Compatible with both steel and fiberglass tubing
-
Cross-Reference Tools: Functions similarly to Halliburton EZ Drill® or Baker Hughes Model D packers — contact us for spec comparison sheets.
Application & Industry Use
-
✅ Zonal Isolation in Vertical or Deviated Wells
-
✅ Injection, Stimulation, and Production Wells
-
✅ Wells Requiring Periodic Casing Integrity Tests
-
✅ Fiberglass Tubing Completions
-
✅ Shallow and Deepwell Deployment
Industry Segments:
-
Upstream (completion & production)
-
Enhanced Oil Recovery (EOR)
-
Gas Storage & Injection
-
Acid Stimulation Operations
Certifications & Compliance
-
✔️ Meets industry mechanical packer standards
-
✔️ Patented upper-slip release system for added safety
-
✔️ Elastomer options available for H₂S / CO₂ resistance
-
⚠️ Not rated for sour service unless elastomer upgrades are specified
-
⚠️ Always confirm material compatibility with local regulatory requirements
Ordering & Procurement Details
-
Availability: Stocked sizes ship in 1–2 weeks; custom ODs available by request
-
Global Fulfillment: Inventory located across North America, MENA, and Asia-Pacific hubs
-
Volume Pricing: Discount tiers begin at 10 units; project packages available
-
Terms: Net 30 / Net 60 terms available for approved buyers
-
Engineering Support: On-call technical assistance for well-specific configuration
-
Long-Term Agreements: Multi-year supply contracts and consignment options offered
Frequently Asked Questions (FAQ)
Q: How is the packer set and released?
A: With a simple ¼ turn of the tubing — set with either compression or tension.
Q: Can it be used in fiberglass tubing applications?
A: Yes, it is explicitly designed for use with both fiberglass and steel tubing.
Q: What happens if debris accumulates near the slips?
A: The integrated bypass valve below the slips flushes out debris during circulation.
Q: Is it sour service rated?
A: Elastomer upgrades are available for H₂S and CO₂ environments — specify when ordering.
Q: Is the packer retrievable without pulling the tubing?
A: Yes, when run with Weatherford’s T-2 on-off tool, the tubing can be retrieved independently.
