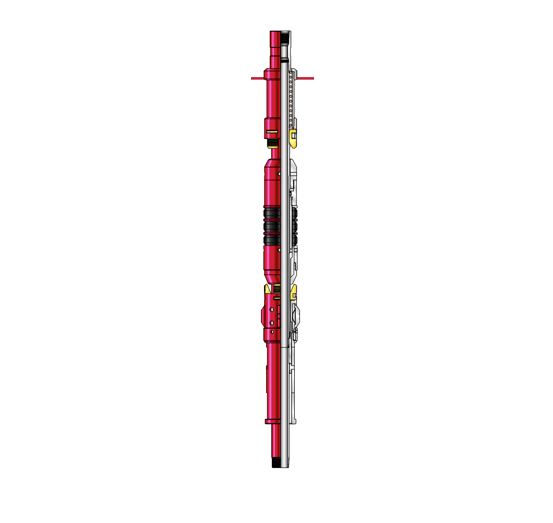

Product Overview
The ArrowSet™ I-X Mechanical Production Packer from Weatherford is a retrievable, double-grip, tension- or compression-set packer engineered for robust and flexible zonal isolation in production, stimulation, or injection applications. With a field-proven design, it delivers high pressure-holding capabilities from above or below while offering quick deployment and retrieval, even in hostile environments. The tool’s patented releasing system reduces operational risks and NPT, ensuring a secure seal and easy release even in challenging conditions.
Key Features, Benefits & Advantages
-
Bidirectional Pressure Integrity – Withstands differential pressures from both directions for enhanced safety and flexibility.
-
Quick Set/Release Mechanism – Requires just 1/4 turn right rotation to engage or disengage, saving time at the wellsite.
-
Compression or Tension Set – Enables versatile installation configurations to suit varying operational conditions.
-
Bypass Valve Below Slips – Washes debris from slips during unsetting, improving tool reliability and longevity.
-
Patented Releasing Slip System – Minimizes the release force required, reducing risk of retrieval failure.
-
Full-Opening Design – Allows passage of wireline tools and other accessories with no flow restriction.
-
Material & Elastomer Options – Available for hostile environments and high-pressure/high-temperature (HPHT) wells.
Technical Specifications (Select Sizes)
| Casing Size | Max OD (in/mm) | Min ID (in/mm) | Weight (lb/ft) | Standard Thread Connections |
|---|---|---|---|---|
| 4-1/2 in. | 4.276 in. (108.61) | 1.938 in. (49.23) | 13.5–15.1 | 2-3/8 EU 8 RD / 1.900 NU 10 RD |
| 5-1/2 in. | 4.950 in. (125.73) | 2.375 in. (60.33) | 20–23 | 2-7/8 EU 8 RD / 3-1/2 EU 8 RD |
| 7 in. | 6.538 in. (166.07) | 3.000 in. (76.20) | 26–35 | 2-7/8 EU 8 RD / 3-1/2 EU 8 RD |
| 9-5/8 in. | 9.001 in. (228.63) | 4.000 in. (101.60) | 8.535–8.755 | 4-1/2 EU 8 RD |
| 13-3/8 in. | 12.716 in. (322.99) | 4.000 in. (101.60) | 12.347 | 4-1/2 EU 8 RD |
Note: Full table of sizes and weights available upon request.
Equipment Compatibility & Cross-Reference
-
Compatible with Model T-2 On-Off Tool and full suite of Weatherford production accessories.
-
Recommended for fiberglass tubing applications.
-
Full compatibility across vertical and deviated wellbores, cemented or uncemented.
Application & Industry Use
-
Applications:
-
Zonal isolation in production and injection wells
-
Acidizing and fracturing stimulation support
-
Pressure management and flow control
-
Injection operations requiring retrievable solutions
-
-
Industry Segments:
-
Upstream conventional and unconventional
-
Enhanced oil recovery (EOR)
-
Offshore and onshore well completions
-
Certifications & Compliance
-
Built under ISO 9001-certified manufacturing systems
-
Available with sour gas and high-temp elastomer options
-
Supports deployment in Class I, Div 2 hazardous environments
-
Designed in accordance with API 11D1 guidelines for packer performance
Ordering & Procurement Details
-
Availability: Broad range of sizes in stock across North America, Middle East, and APAC warehouses
-
Lead Time: 1–3 weeks standard; expedited options available
-
Bulk Orders: Volume discounts available for multi-well programs
-
Payment Terms: Flexible Net 30/60 terms available for qualified clients
-
Custom Configurations: Available upon request for non-standard casing/tubing combinations
Frequently Asked Questions (FAQ)
Q: Can this packer be retrieved without milling?
A: Yes. It is fully retrievable using a simple 1/4 right-hand turn to release.
Q: What happens during release if pressure is trapped below the packer?
A: The bypass valve opens before the slips release, safely equalizing pressure before retrieval.
Q: Is this suitable for high H2S or CO2 environments?
A: Yes. Elastomer and metallurgy options are available for corrosive service applications.
Q: Can I run this with fiberglass tubing?
A: Absolutely. This packer is ideal for fiberglass string compatibility.
Q: Are larger OD sizes like 13-3/8 in. supported?
A: Yes. Models up to 13-3/8 in. casing are available with matching standard thread connections.
Call to Action (CTA)
📩 Request a Quote for Sizing & Delivery Options
🔎 Explore Cross-Reference for Casing & Tubing Fitment
📞 Speak with Our Completions Specialists for Custom Configurations

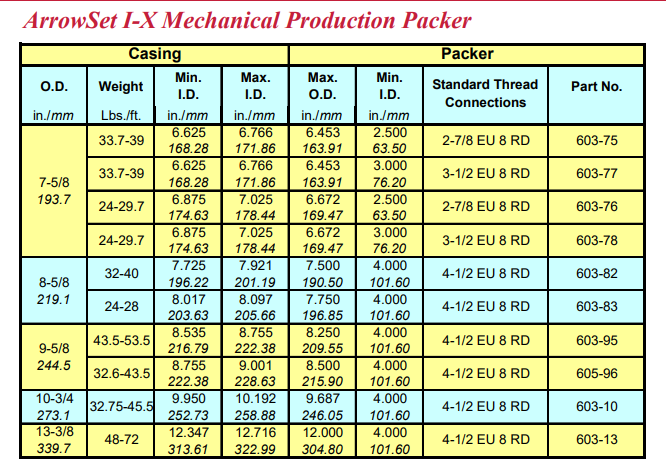

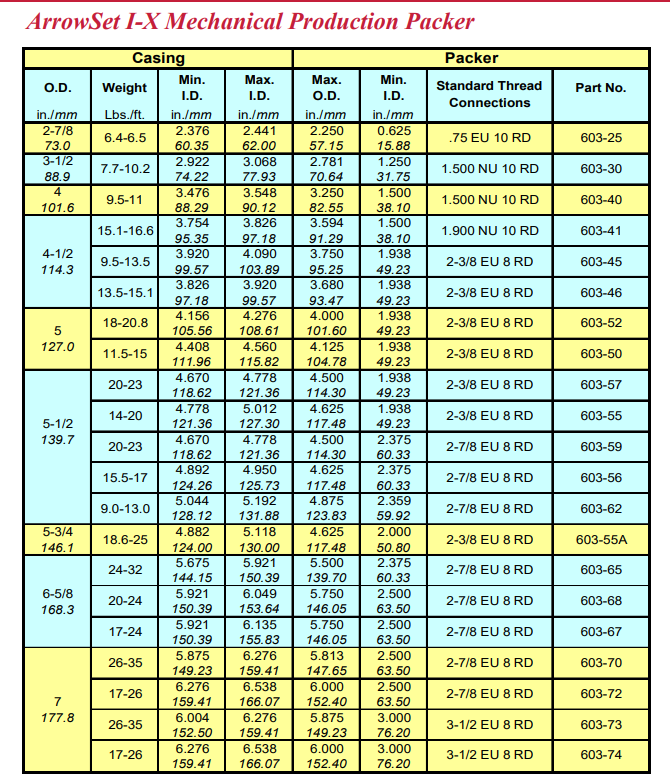

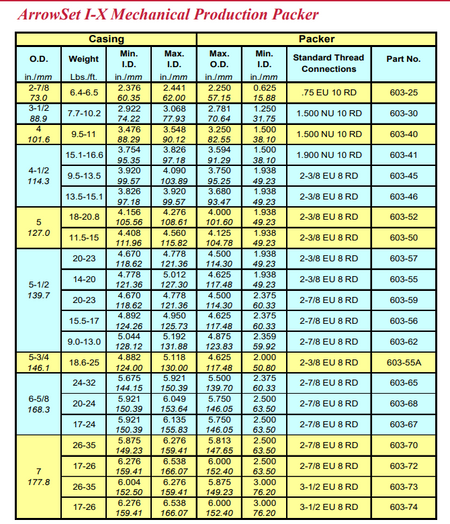

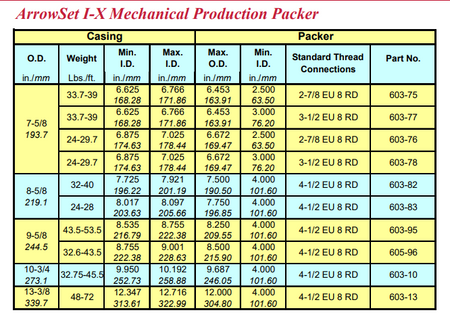

📎 See the attached ArrowSet I-X technical data sheet (PDF) for complete casing weight compatibility, pressure ratings, and part number cross-references.
