Product Overview

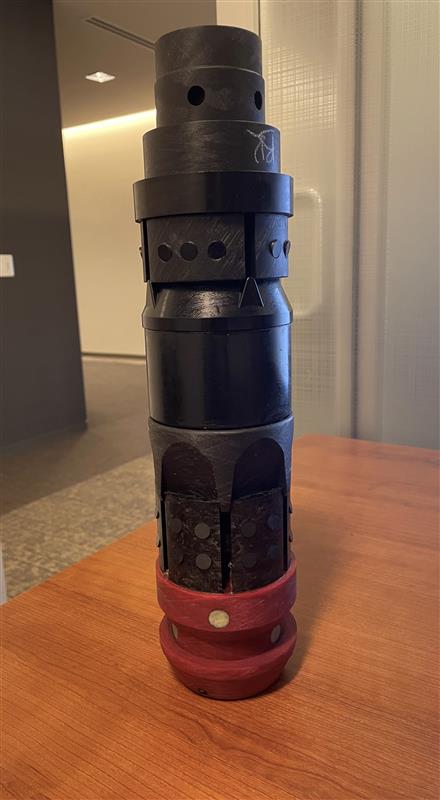

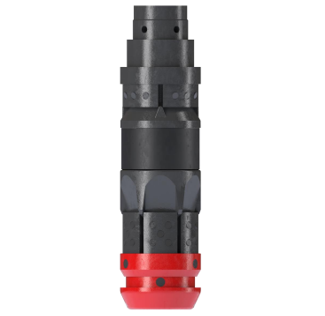

The Minima™ Resolve Composite Frac Plug is an ultra-compact, high-performance plug engineered for efficient zonal isolation in hydraulic fracturing operations. With a minimal outer diameter of 3.625” and a 10,000 psi pressure rating, it delivers exceptional sealing performance in slim-hole completions while minimizing mill-out debris and operational time.
This plug is designed for slick, efficient deployments via wireline or hydraulic setting tools, making it ideal for high-density stage fracturing in demanding shale plays.
Key Features, Benefits & Advantages
-
Ultra-Compact 3.625” OD – Ideal for slim-hole and multi-stage horizontal completions.
-
10,000 psi Differential Pressure Rating – Ensures robust isolation performance under high pressure.
-
Short-Length Design – Reduces run-in and mill-out times, improving rig efficiency.
-
Full Composite Construction – Eliminates metallic parts, leading to fast, clean mill-outs.
-
Dual-Compatibility – Compatible with both wireline and hydraulic deployment systems.
-
Optimized Slip & Element Design – Enhances anchoring reliability and sealing integrity.
-
Reduced Debris Profile – Minimizes post-frac cleanup and production interference.
-
Operational Efficiency – Supports high-density plug-and-perf completions.
Technical Specifications
| Parameter | Specification |
|---|---|
| OD (Outer Diameter) | 3.625 in |
| Length | Short-body design (exact length TBD) |
| Max Differential Pressure | 10,000 psi |
| Temperature Rating | Up to 300°F (149°C) |
| Material Composition | Full Composite – non-metallic |
| Deployment Compatibility | Wireline & Hydraulic setting tools |
| Mill-Out Time | Reduced — Fast Drillable Design |
| Casing Compatibility | 4.5” and similar casing sizes |
Equipment Compatibility & Cross-Reference
-
Compatible with:
-
Conventional wireline setting tools
-
Hydraulic workstring-deployed tools
-
-
Casing Fitment:
-
Optimal for 4.5” casing (11.6 to 13.5 lb/ft)
-
-
Cross-Reference Equivalent Products:
-
Baker Hughes V-Zero™ Composite Plug
-
Schlumberger Infinity™ Plug
-
Halliburton Obsidian® Composite Plug
-
Application & Industry Use
Primary Applications:
-
Plug-and-perf hydraulic fracturing
-
Stage isolation in horizontal wells
-
Post-frac zonal separation
Industry Segments:
-
Upstream (Unconventional shale plays)
-
Completions engineering
-
Multistage stimulation
Certifications & Compliance
-
API 11D1 – Specification for Packers & Bridge Plugs
-
NACE MR0175 Compliance – Material compatibility in H2S environments
-
ISO 9001 Certified Manufacturing
-
Meets environmental and debris control standards for post-frac production zones
Ordering & Procurement Details
-
Availability: In-stock in most U.S. shale basins
-
Lead Time: 1–3 days for standard quantities; custom configurations upon request
-
Shipping Options: Same-day dispatch from regional warehouses in Midland, Houston, and Williston
-
Bulk Pricing: Tiered discounts available for orders ≥50 units
-
Payment Terms: Net 30 / Net 60 for qualified procurement accounts
-
Supply Contracts: Custom long-term agreements with fixed pricing available
Frequently Asked Questions (FAQ)
Q: Can the Minima Resolve plug be set with standard wireline tools?
A: Yes, it is compatible with most industry-standard wireline setting tools.
Q: What happens to the composite material after mill-out?
A: The plug mills into fine, non-metallic debris that is easily circulated out, minimizing production interference.
Q: Is it suitable for high-temperature wells?
A: Yes, the plug is rated up to 300°F (149°C).
Q: What casing weights is this plug compatible with?
A: It is optimized for 4.5” casing weights between 11.6 – 13.5 lb/ft.
Q: Is there a risk of hang-up or partial setting?
A: No — its compact, slip-optimized design ensures consistent deployment and secure anchoring.
📎 For complete specifications, pressure ratings, and mill-out performance data, see the attached technical data sheet (PDF).
