Product Overview

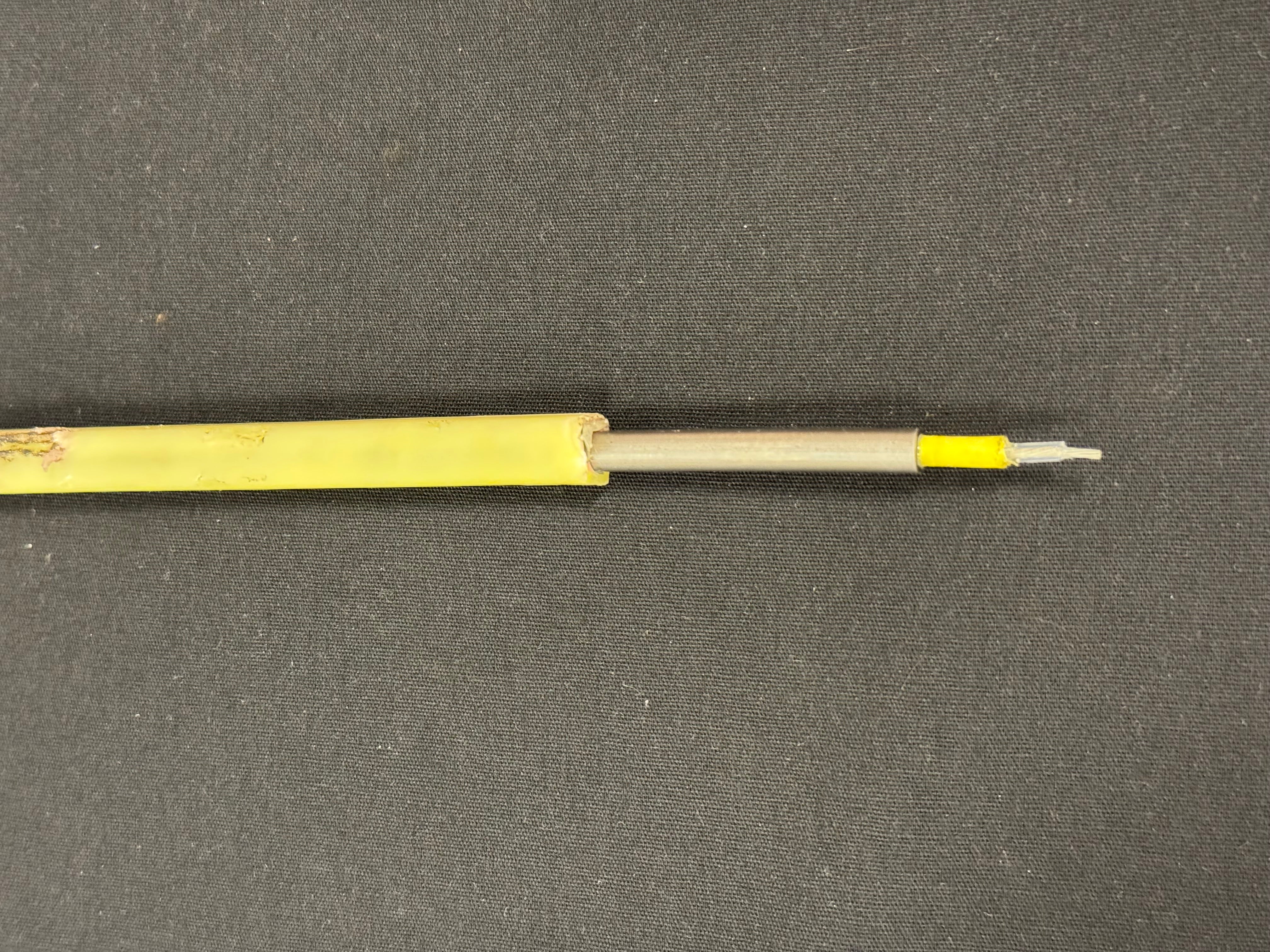

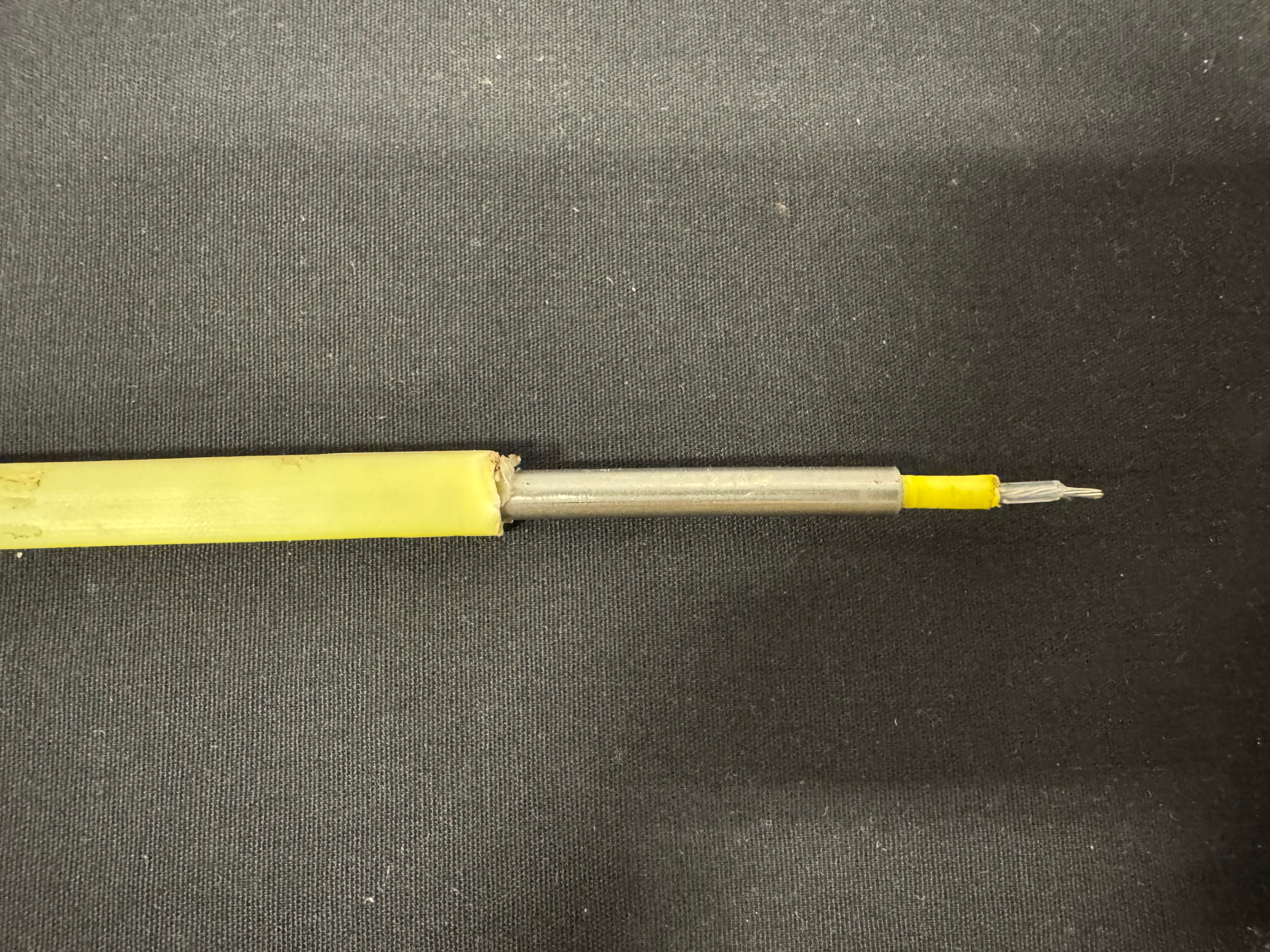

The 01181371 TEC (Tubing Encapsulated Cable) is a high-integrity downhole electrical cable engineered for long-term deployment in oil & gas wells. Designed with 316L stainless steel tubing, 18 AWG tin-coated copper conductors, and polypropylene encapsulation, this cable is optimized for electronic sensing systems, including pressure and temperature gauges in challenging reservoir environments.
Manufactured by Rockbestos, this TEC provides excellent mechanical strength, thermal resistance up to 150°C, and chemical durability for extended field life in reservoir monitoring and permanent downhole sensing systems.
Key Features, Benefits & Advantages
-
Rated to 150°C Continuous Operation
Supports long-term thermal exposure in high-temperature well environments.
-
18 AWG 7-Strand Tin-Coated Copper Conductor
Ensures reliable electrical signal transmission with superior corrosion protection.
-
316L Stainless Steel Tubing with 0.028" Wall
Provides excellent corrosion and pressure resistance, ideal for harsh downhole conditions.
-
Polypropylene 11mm x 11mm Encapsulation
Maintains cable integrity, mechanical protection, and compatibility with cable clamps and hangers.
-
Fluoropolymer Insulation & Solid Polyolefin Filler
Enhances thermal and chemical resistance while maintaining cable flexibility and structure.
-

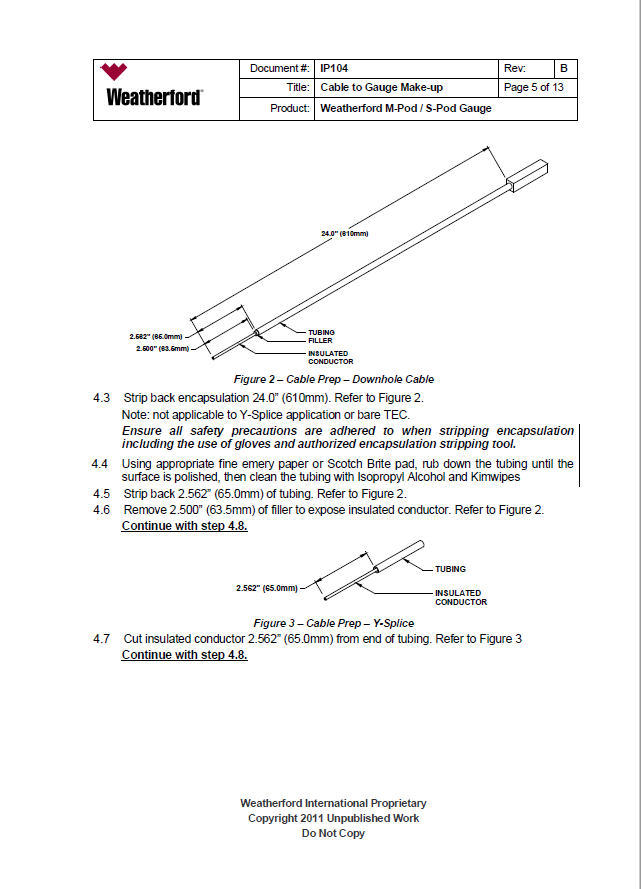

OEM Drawing: WTH_18AWG_316L_028_150_POLY_RR
Matches RSCC/Weatherford internal drawing standards, ensuring precise compatibility.
Technical Specifications
|
Attribute |
Value |
|
SKU |
01181371 |
|
Description |
TEC Cable – 150°C, 18 AWG, SS 316L Tubing |
|
Conductor Type |
18 AWG, 7-strand tin-coated copper |
|
Insulation |
Fluoropolymer |
|
Filler Material |
Solid Polyolefin |
|
Encapsulation Material |
Polypropylene |
|
Encapsulation Size |
11 mm x 11 mm |
|
Temperature Rating |
150°C |
|
Tubing Material |
316L Stainless Steel |
|
Tubing Wall Thickness |
0.028" |
|
Manufacturer |
Rockbestos |
|
Manufacturer Part Number |
DC01018-017 |
|
Legacy Part Number |
PC00-24287-03P |
|
Drawing Reference |
WTH_18AWG_316L_028_150_POLY_RR |
Equipment Compatibility & Cross-Reference
-
OEM Compatibility:
Designed for use in Weatherford and Petrowell downhole sensor systems, including gauge and data acquisition lines.
-
Companion Part:
-
02604674 – Rental version of same TEC profile
-
Cross-Reference Options:
Comparable to other 18 AWG, 316L stainless TECs used in permanent monitoring deployments across major service providers.
Application & Industry Use
-
Applications:
-
Permanent downhole pressure/temperature monitoring
-
Reservoir surveillance and production logging
-
Intelligent well completions
-
Cabled gauge and sensor deployments
-
Industry Segments:
-
Upstream: Reservoir monitoring, completions, and interventions
-
Digital Oilfield: Data-driven production optimization
-
Unconventional Plays: Long-term zonal monitoring in HPHT wells
Certifications & Compliance
-
Manufactured to meet Weatherford internal specifications
-
Matches RSCC Drawing WTH_18AWG_316L_028_150_POLY_RR
-
Material composition compliant with industry norms for corrosive and high-temp wells
-
Specified Manufacturer Required (Rockbestos) – Ensures product traceability and integrity
Note: Additional certifications (NACE, ISO, IEC) available upon engineering request.
Ordering & Procurement Details
-
Availability:
Stocked in select regional distribution centers; rental variant available (02604674)
-
Lead Time:
2–4 weeks for custom spooling; expedited options on request
-
Shipping & Packaging:

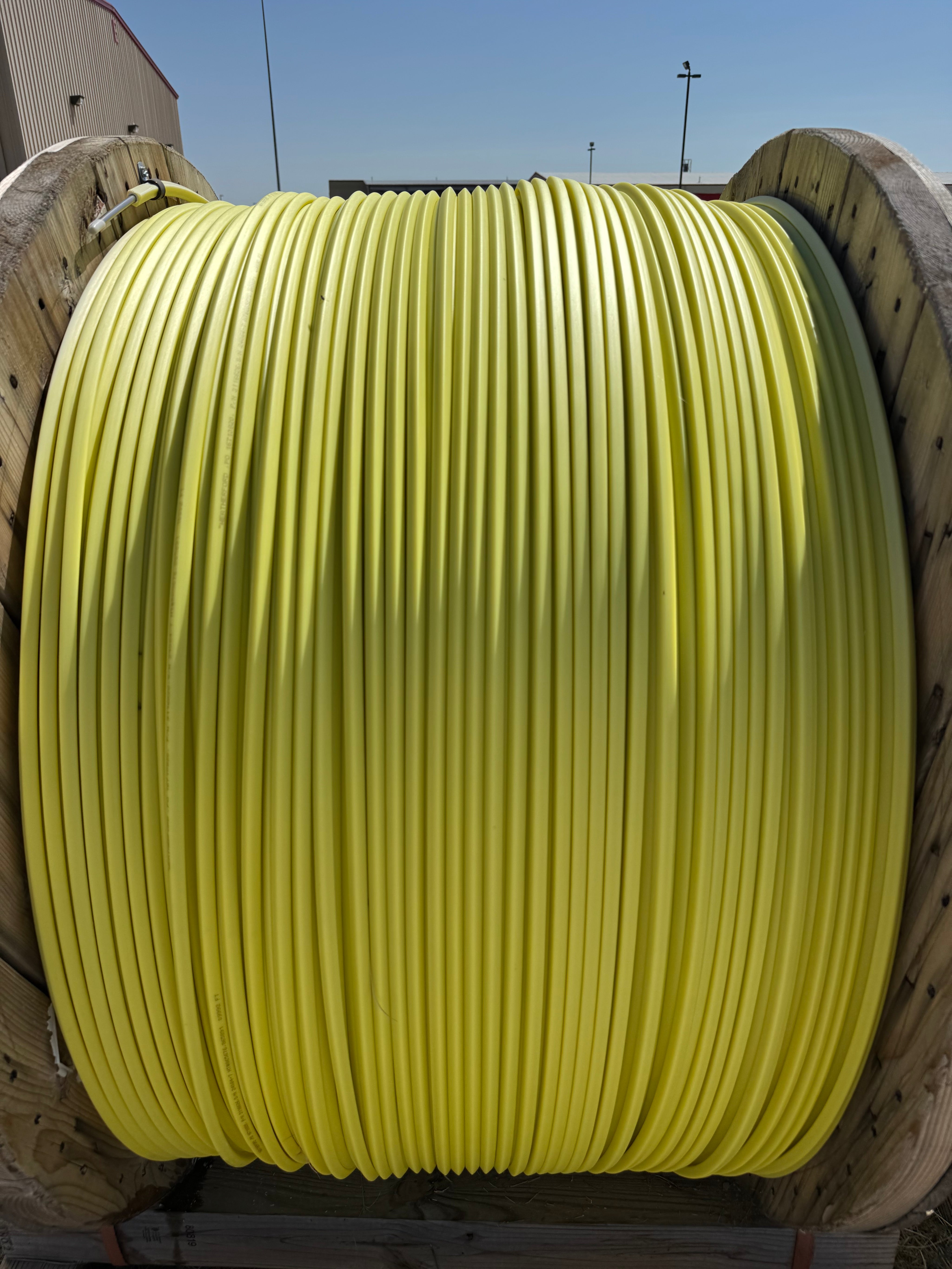

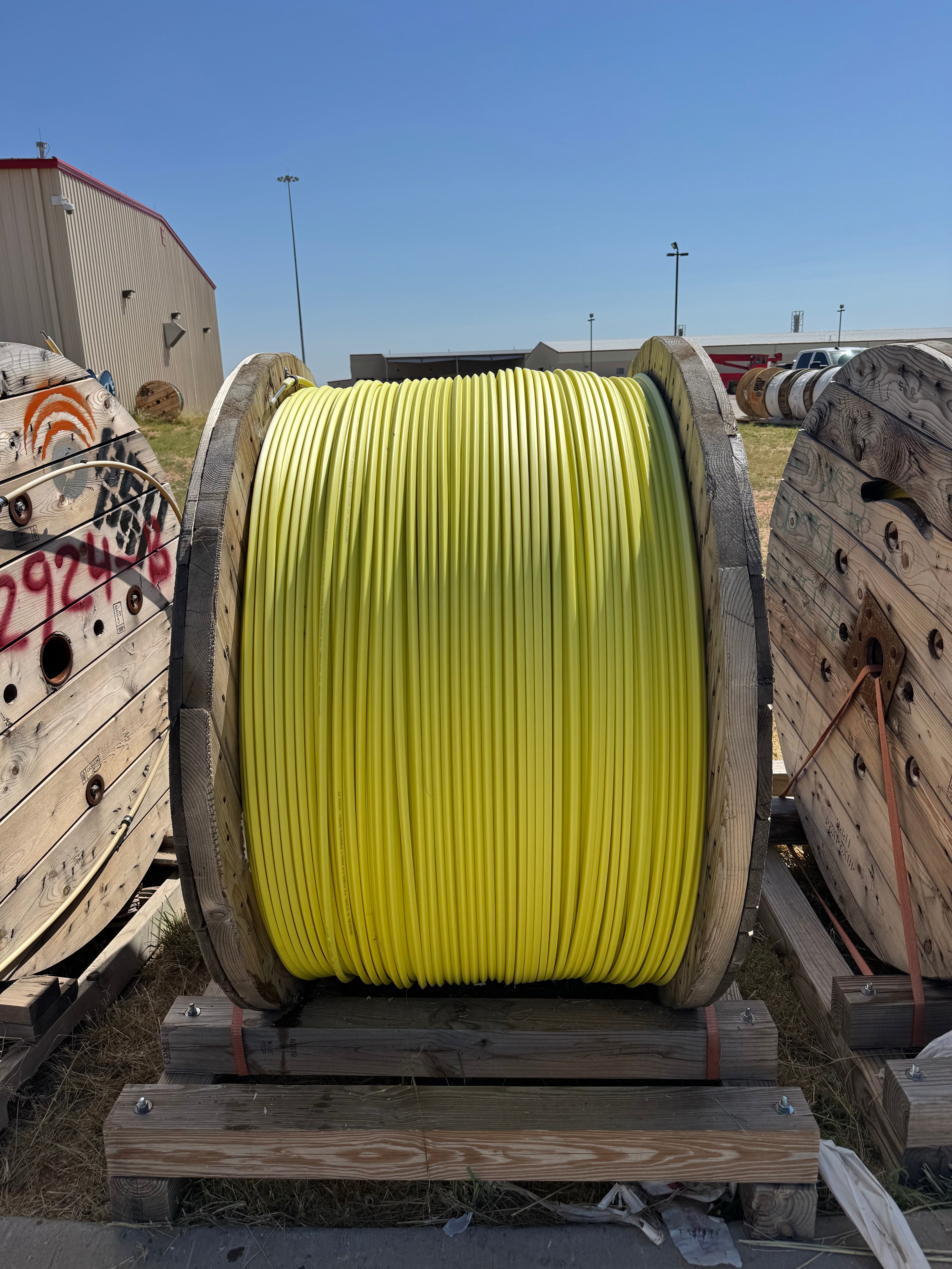

Supplied in coiled reels, sealed and certified for field use
Custom cut lengths available upon order specification
-
Contract & Volume Pricing:
-
Long-length order discounts
-
Annual supply agreements available
-
Net 30 / 60 payment terms on approval
Frequently Asked Questions (FAQ)
Q: Can this cable withstand H₂S service environments?
A: Yes, 316L tubing and fluoropolymer insulation provide chemical resistance suitable for sour service. NACE documentation available.
Q: Is this cable armored or pressure-rated?
A: Yes, 316L tubing with 0.028" wall offers excellent pressure containment in standard TEC applications.
Q: Can I use this in multi-drop gauge installations?
A: Absolutely – it supports multiple gauge strings and has the structural resilience for multi-drop monitoring systems.
Q: Can this be spliced or repaired in the field?
A: Field splicing is not recommended. Pre-measured, connectorized assemblies or full-length replacements are advised.
