Product Overview

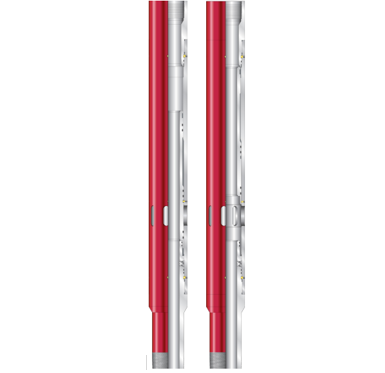

The ZoneSelect™ Rupture Disc (RD) Toe Sleeve with Fike Discs is a critical component of multizone well completions, engineered to initiate formation access with rupture-disc actuation. Designed for both cemented and openhole applications, this toe sleeve enables efficient stimulation operations by providing a reliable, high-pressure-rated initial point of entry. It’s ideal for use in plug-and-perf systems or as part of the Weatherford ZoneSelect system, offering unmatched precision, durability, and operational safety.
Key Features, Benefits & Advantages
-
±4% Pressure Tolerance – Ensures accurate actuation pressure indication to improve operational confidence.
-
High Flow Area – Large ports optimize stimulation capacity, boosting production rates.
-
Ball Drop Compatibility – Upper sub accepts a dissolvable ball for casing pressure tests and plug replacement in extended reach wells.
-
Mill-Out Cost Savings – Eliminates the need to pump the first plug in plug-and-perf operations.
-
Permanent Lock-Open Mechanism – Prevents accidental closure post-actuation, ensuring sustained zone access and enhanced safety.
Technical Specifications
| Parameter | 4.5" | 4.5" Slim Hole | 5.5" | 5.5" Large Bore |
|---|---|---|---|---|
| Casing Size | 4.50 in. (114.30 mm) | 4.50 in. (114.30 mm) | 5.50 in. (139.70 mm) | 5.50 in. (139.70 mm) |
| Casing Weight | 13.50 lb/ft | 13.50 lb/ft | 23.00 lb/ft | 23.00 lb/ft |
| OD (max) | 5.65 in. | 5.35 in. | 6.75 in. | 7.61 in. |
| ID (min) | 3.34 in. | 3.00 in. | 4.00 in. | 4.67 in. |
| Flow Port Area | 21.54 in² | 17.06 in² | 24.50 in² | 25.76 in² |
| Temperature Rating | 350°F (177°C) | 350°F (177°C) | 350°F (177°C) | 350°F (177°C) |
| Burst Disc Range | 3,500–16,500 psi | 3,500–16,500 psi | 3,500–16,500 psi | 3,500–16,500 psi |
| Tensile Rating (110 ksi) | 425,000 lbf | 550,000 lbf | 770,000 lbf | 1,048,800 lbf |
| Collapse Rating (110 ksi) | 15,010 psi | 18,400 psi | 16,500 psi | 18,100 psi |
| Burst Rating (110 ksi) | 15,980 psi | 20,600 psi | 17,670 psi | 19,480 psi |
Slim Hole version uses 125 ksi MYS material. Discs available in 500 psi increments.
Equipment Compatibility & Cross-Reference
-
OEM Integration: Fully compatible with Weatherford ZoneSelect™ multistage stimulation systems.
-
Plug-and-Perf: Drop-in replacement for traditional toe subs and first-stage plugs.
-
Ball Seat: Accepts dissolvable ball for seamless casing pressure testing.
Application & Industry Use
-
Applications:
-
Initial stage for multistage hydraulic fracturing
-
Toe activation for stimulation operations
-
Pressure testing alternative in extended-reach horizontal wells
-
-
Industry Segments:
-
Upstream completions
-
Unconventional resource development (shale/tight formations)
-
Offshore and onshore stimulation programs
-
Cemented and openhole configurations
-
Certifications & Compliance
-
Designed in accordance with industry-standard pressure and collapse ratings
-
High-grade materials tested to 80, 110, and 135 ksi yield strength
-
Weatherford manufacturing processes certified to ISO 9001
-
Suitable for deployment in Class I Div 2 hazardous environments
Ordering & Procurement Details
-
Availability: Standard sizes in stock; custom disc ratings available upon request.
-
Lead Times: 2–4 weeks for custom configurations.
-
Shipping: Expedited shipping from strategic warehouses in North America and the Middle East.
-
Bulk Options: Volume pricing tiers available.
-
Payment Terms: Flexible terms (Net 30/60) for approved buyers.
-
Long-Term Supply: Contract-based fulfillment programs for multi-well campaigns.
Frequently Asked Questions (FAQ)
Q: Can the sleeve be re-closed after opening?
A: No. The sleeve locks open permanently to ensure continuous access and flow.
Q: Are custom disc pressures available?
A: Yes. Discs are available in 500 psi increments from 3,500 to 16,500 psi.
Q: What temperature limits apply to this tool?
A: The sleeve is rated for continuous operation up to 350°F (177°C).
Q: Is this suitable for extended reach laterals?
A: Absolutely. It's specifically engineered for high-pressure toe stimulation in extended laterals.
Q: Can it be used as a pressure test point?
A: Yes. The upper sub functions as a seat for a dissolvable ball, facilitating casing integrity testing.
